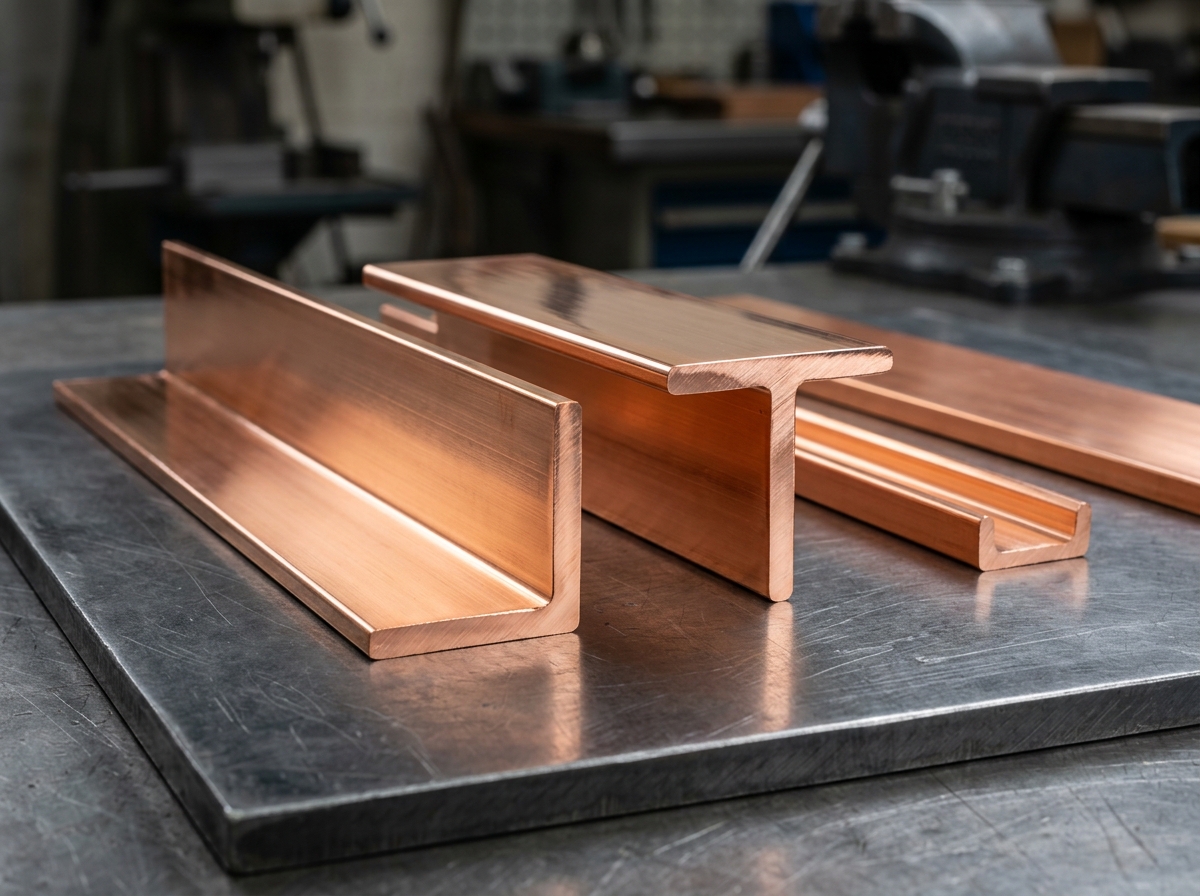

Custom Copper Profiles | Special Extruded Shapes
Material No. Unified Numbering System (UNS): C11000, C18150, C18200
Chemical Composition
| Element | Cu | Alloy Additions |
|---|---|---|
| Min (%) | 99.90 | 0.1 |
| Max (%) | Rem | 1.5 |
1. Custom extrusion dies manufactured in-house.
Engineered custom copper extruded profiles designed to match complex cross-sectional geometries for generator and motor stators.
Common Fabrication Processes
Extrusion
Draw Bench Sizing
CNC Milling
Mechanical & Electrical Properties
| Form | Range in mm | Tensile Strength in N/MM² | Elongation in % | Rockwell Hardness HRB | Conductivity% |
|---|---|---|---|---|---|
| Profile | Circumscribing 30-150mm | 320-450 | 10-15 | 70-90 HB | 80-98 |
Physical Properties
| Density lb/cu in. at 20°C | 0.321 |
| Electrical Conductivity% IACS at 20°C | 80-100 |
Applicable Form & Size
| Form | Size Dimensions |
|---|---|
| Custom Profile | Circumscribing circle of Dia 30 to 150 mm |
Apart from above we can also manufacture as per customer specification.
Typical Industrial Applications
Electrical Sector
- Commutator Segments
- Transformer Windings
Industrial & Automotive Sector
- Switchgear Sliding Contacts
